HARZLabs Dental Clear 3D printing resin

HARZLabs Dental Clear 3D printing resin

from 105.00

Designed for printing transparent clear models, such as aligners, kappa.

Color:
Size:
Quantity:
Add to Cart

3D Printing resin HARZLabs Dental Clear for transparent clear models.

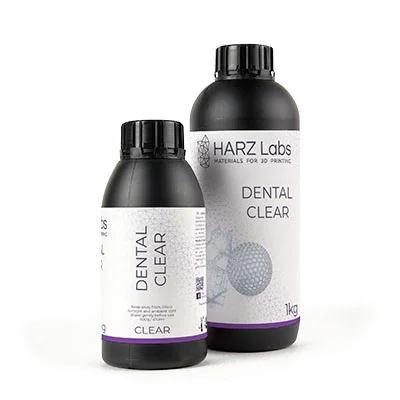

D Clear.jpg

Designed for printing transparent clear models, such as aligners, kappa, HARZLabs Dental Clear 3D printing resins is precise, very tough, transparent and odorless.

Dental Clear resin is hard PMMA-like hard clear resin designed for printing models, used in dental application, where transparency is one of the main issues.

It can be used to 3D prints demonstration models for operation planning, aligners, surgical guides

Currently under certification process..

COMPATIBLE WITH MAIN DLP/LCD 3D PRINTERS




3D printing resin HARZLabs Dental Clear characteristics

 Package                 1kg/0.5kg
 Applications    Clear Dental models such as aligners
 Color    Clear, Transparent
 Viscosity (Brookfield)       at 25°C      0.9-1 Pa.s
 Hardness (Shore D)    90-92
 Tensile strenght    60 N/mm2
 Elongation at break    4-6%
 Shrinkage    <0.5%



Dental Clear_s.jpg

Advantages

  • LOW VISCOSITY

    The resin has relatively low viscosity. It decreases time for leveling, easy to clean to provide maximum accuracy at minimum time.

  • ODORLESS

    Resins are odorless and cause no irritation, so you can work with natural ventilation.

  • LOW SHRINKAGE

    Shrinkage less than 0.5% gives you the same size of the 3D model on your computer

  • BIOCOMPATIBLE

    Produced from biocompatible raw material used in photopolymer teeth fillings. Meets the standards ISO 10993.

  • TRANSPARENT

    High transparency and low yellowing after post treatment.

  • DURABLE

    Very high hardness and tensile strength.

Finishing Instructions

  1. Agitate in ultrasonic bath with TEK1969 Detergent or in a vat with TEK1960* solvent for 1-2 minutes to remove excess resin.

  2. Do not soak in acetone. Do not leave the 3D part soaking in the liquid. Use a soft brush if necessary.

  3. Clean off any excess of liquid with a cold blowdryer or compressed air.

  4. Leave under the sun or in a UV lamp to cure. The resin is fully cured when fingernails do not leave scratch marks on the object.

  5. Even after full post cure some parts may still have a sticky surface. You can treat your print with Ta-Tack Away. A quick wash in this special formula will add a stick-free coating on the printed part.Store the resin in a dry, cool, shaded place out of direct sunlight.

*We do not recommend the use of denatured or isopropyl alcohol (IPA). It is very aggressive on the polymerized resin and it could weaken the structure of the 3D part. It is also flammable and potentially harmful to people and the environment.

Store the resin in a dry, cool, shaded place out of direct sunlight.
